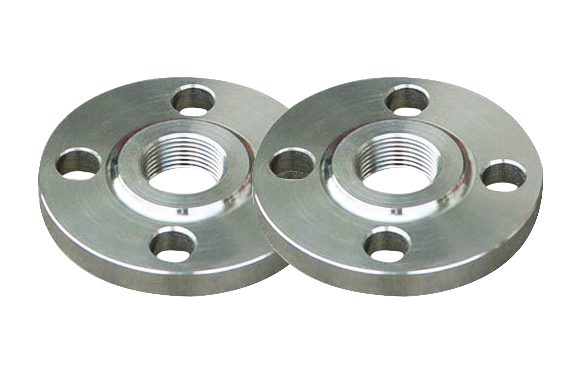

碳鋼螺紋法蘭是指采用螺紋與管道連接的一種法蘭。這種連接方式簡單快捷，不需要復雜的焊接或螺栓固定，具有安裝、維修方便的特點，可在一些現場不允許焊接的管線上使用。螺紋法蘭廣泛應用于石油、化工、電力、冶金、制藥等工業領域，用于連接各種管道、閥門、泵等設備。
碳鋼螺紋法蘭的規格
Size Range | 1/2" - 24" / DN15 - DN600 |
Pressure Rating | Class 150, 300, 600, 900, 1500, 2500lb |
Standard | ASME B16.5, EN1092-1 |
Carbon Steel | ASTM A105 / A105N |
美標和歐標碳鋼法蘭的材質差異
碳鋼的生產標準有ASME B16.5和EN1092-1兩種，其中ASME B16.5的材料等級為ASTM A105,EN1092-1的材料標準有P235GH，250GH，280GH等。
ASTM A105 化學成分
CHEMICAL | LIMITS | C | Mn | P | S | Si | Cu | Ni | Cr | Mo | V |
ASTM A105 | MIN |
| 0.60 |
|
| 0.10 |
|
|
|
|
|
MAX | 0.35 | 1.05 | 0.035 | 0.040 | 0.35 | 0.40 | 0.40 | 0.30 | 0.12 | 0.08 |
機械性能
MATERIAL | T.S (MPA) | Y.S (MPA) | EL % | R/A % | HARDNESS |
ASTM A105 | 485 min | 250 min | 22 min | 30 min | 197 max |
CHEMICAL | LIMITS | C | Si | Mn | P | S | Cr | Mo | Ni | Al | Cu | Nb | Ti | V | Cr+Cu+Mo+Ni |
P235GH(1.0345) | MIN |
|
|
|
|
|
|
|
| 0.02 |
|
|
|
|
|
MAX | 0.16 | 0.35 | 1.20 | 0.025 | 0.020 | 0.30 | 0.08 | 0.30 |
| 0.3 | 0.01 | 0.04 | 0.02 | 0.7 |
機械性能
MATERIAL | T.S (MPA) | Y.S (MPA) | EL % | Impact Properties |
P235GH(1.0345) | 360-500 | 235 min | 25 min | 40min(0℃) |
美標法蘭遵循的是以美國ASME為代表的美洲法蘭標準體系，該體系具有嚴格的規范和標準，確保了產品的互換性和可靠性。相比之下，國際市場上的互換性可能受到一定限制，在需要承受高溫高壓的工業環境中往往對法蘭的強度和密封性有極高的要求，而美標法蘭能夠很好地滿足這些要求。這種性能表現使得美標法蘭在石油、化工、天然氣等行業中得到廣泛應用。
碳鋼螺紋法蘭的尺寸和重量
螺紋法蘭的尺寸從1/2" -到24"，壓力等級有150#，300#， 600#, 900#, 1500#, 2500#

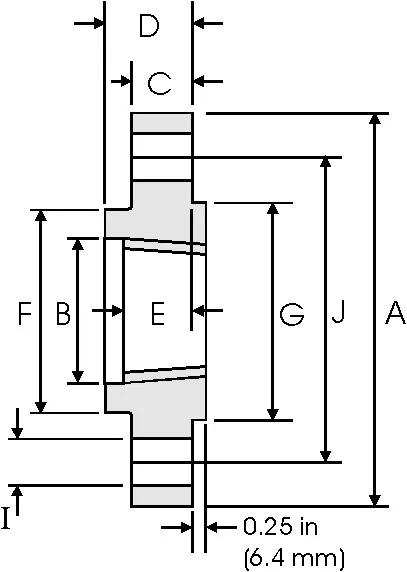

Class 150螺紋法蘭尺寸和重量
NPS
| A | C | D | E | F | G | H | I | J | W |
inch | inch | inch | inch | inch | inch | No. of Holes
| inch | inch | kg/pc |
mm | mm | mm | mm | mm | mm | mm | mm |
1/2 | 3.50 | 0.44 | 0.62 | 0.62 | 1.19 | 1.38 | 4 | 0.62 | 2.38 | 0.39 |
88.90 | 11.20 | 15.70 | 15.70 | 30.20 | 35.10 | 15.70 | 60.45 |
3/4 | 3.88 | 0.50 | 0.62 | 0.62 | 1.50 | 1.69 | 4 | 0.62 | 2.75 | 0.56 |
98.60 | 12.70 | 15.70 | 15.70 | 38.10 | 42.90 | 15.70 | 69.85 |
1 | 4.25 | 0.56 | 0.69 | 0.69 | 1.94 | 2.00 | 4 | 0.62 | 3.12 | 0.78 |
108.00 | 14.20 | 17.50 | 17.50 | 49.30 | 50.80 | 15.70 | 79.25 |
1 1/4 | 4.62 | 0.62 | 0.81 | 0.81 | 2.31 | 2.50 | 4 | 0.62 | 3.50 | 1.03 |
117.30 | 15.70 | 20.60 | 20.60 | 58.70 | 63.50 | 15.70 | 88.90 |
1 1/2 | 5.00 | 0.69 | 0.88 | 0.88 | 2.56 | 2.88 | 4 | 0.62 | 3.88 | 1.32 |
127.00 | 17.50 | 22.40 | 22.30 | 65.00 | 73.15 | 15.70 | 98.60 |
2 | 6.00 | 0.75 | 1.00 | 1.00 | 3.06 | 3.62 | 4 | 0.75 | 4.75 | 2.06 |
152.40 | 19.10 | 25.40 | 25.40 | 77.70 | 91.90 | 0.75 | 4.75 |
2 1/2 | 7.00 | 0.88 | 1.12 | 1.12 | 3.56 | 4.12 | 4 | 0.75 | 5.50 | 3.28 |
177.80 | 22.40 | 28.40 | 28.40 | 90.40 | 104.60 | 19.10 | 139.70 |
3 | 7.50 | 0.94 | 1.19 | 1.19 | 4.25 | 5.00 | 4 | 0.75 | 6.00 | 3.85 |
190.50 | 23.90 | 30.20 | 30.20 | 108.00 | 127.00 | 19.10 | 152.40 |
3 1/3 | 8.50 | 0.94 | 1.25 | 1.25 | 4.81 | 5.50 | 8 | 0.75 | 7.00 | 4.81 |
215.90 | 23.90 | 31.75 | 31.75 | 122.20 | 139.70 | 19.10 | 177.80 |
4 | 9.00 | 0.94 | 1.31 | 1.31 | 5.31 | 6.19 | 8 | 0.75 | 7.50 | 5.3 |
228.60 | 23.90 | 33.30 | 33.30 | 134.90 | 157.20 | 19.10 | 190.50 |
5 | 10.00 | 0.94 | 1.44 | 1.44 | 6.44 | 7.31 | 8 | 0.88 | 8.50 | 6.07 |
254.00 | 23.90 | 36.60 | 36.60 | 163.60 | 185.70 | 22.40 | 215.90 |
6 | 11.00 | 1.00 | 1.56 | 1.56 | 7.56 | 8.50 | 8 | 0.88 | 9.50 | 7.45 |
279.40 | 25.40 | 39.60 | 39.60 | 192.00 | 215.90 | 22.40 | 241.30 |
8 | 13.50 | 1.12 | 1.75 | 1.75 | 9.69 | 10.62 | 8 | 0.88 | 11.75 | 12.1 |
342.90 | 28.40 | 44.50 | 44.50 | 246.10 | 269.70 | 22.40 | 298.50 |
10 | 16.00 | 1.19 | 1.94 | 1.94 | 12.00 | 12.75 | 12 | 1.00 | 14.25 | 16.5 |
406.40 | 30.20 | 49.30 | 49.30 | 304.80 | 323.90 | 25.40 | 362.00 |
12 | 19.00 | 1.25 | 2.19 | 2.19 | 14.38 | 15.00 | 12 | 1.00 | 17.00 | 26.2 |
482.60 | 31.75 | 55.60 | 55.60 | 365.30 | 381.00 | 25.40 | 431.80 |
14 | 21.00 | 1.38 | 2.25 | 2.25 | 15.75 | 16.25 | 12 | 1.12 | 18.75 | 34.6 |
533.40 | 35.10 | 57.15 | 57.15 | 400.10 | 412.70 | 28.40 | 476.30 |
16 | 23.50 | 1.44 | 2.50 | 2.50 | 18.00 | 18.50 | 16 | 1.12 | 21.25 | 44.8 |
596.90 | 36.60 | 63.50 | 63.50 | 457.20 | 469.90 | 28.40 | 539.80 |
18 | 25.00 | 1.56 | 2.69 | 2.69 | 19.88 | 21.00 | 16 | 1.25 | 22.75 | 48.9 |
635.00 | 39.60 | 68.30 | 68.30 | 505.00 | 533.40 | 31.75 | 577.90 |
20 | 27.50 | 1.69 | 2.88 | 2.88 | 22.00 | 23.00 | 20 | 1.25 | 25.00 | 61.9 |
698.50 | 42.90 | 73.15 | 73.15 | 558.80 | 584.20 | 31.75 | 635.00 |
24 | 32.00 | 1.88 | 3.25 | 3.25 | 26.12 | 27.25 | 20 | 1.38 | 29.50 | 86.9 |
812.80 | 47.80 | 82.60 | 82.60 | 663.40 | 692.20 | 35.10 | 749.30 |
Class 900螺紋法蘭尺寸和重量
| FlangeData | Hub | Raised | DrillingData |
| Weight |
| Face |
| Nominal PipeSize |
| A | B | C | D | E | F | G | H | I | J | kg/
piece |
| Outside | Diameter | Counter- | Flange | Overall | Threaded | Hub | Face | Number
of Holes | BoltHole | Diameter |
| Diameter | Overall | bore
min | Thickness
min | Length | length
min | Diameter | Diameter | Diameter | of Circle
of Holes |
|
| in | in | in | in | in | in | in | in | in | in |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 1/2 | 0.84 | 4.75 | 0.93 | 0.88 | 1.25 | 0.88 | 1.5 | 1.38 | 4 | 0.88 | 3.25 | 1.74 |
| 21.3 | 120.6 | 23.6 | 22.3 | 31.7 | 22.3 | 38.1 | 35.1 | 22.3 | 82.5 |
| 3/4 | 1.05 | 5.12 | 1.14 | 1 | 1.38 | 1 | 1.75 | 1.69 | 4 | 0.88 | 3.5 | 2.34 |
| 26.7 | 130 | 29 | 25.4 | 35 | 25.4 | 44.4 | 42.9 | 22.3 | 88.9 |
| 1 | 1.315 | 5.88 | 1.41 | 1.12 | 1.62 | 1.12 | 2.06 | 2 | 4 | 1 | 4 | 3.44 |
| 33.4 | 149.3 | 35.8 | 28.4 | 41.1 | 28.4 | 52.3 | 50.8 | 25.4 | 101.6 |
| 1 1/4 | 1.66 | 6.25 | 1.75 | 1.12 | 1.62 | 1.19 | 2.5 | 2.5 | 4 | 1 | 4.38 | 3.91 |
| 42.2 | 158.7 | 44.4 | 28.4 | 41.1 | 30.2 | 63.5 | 63.5 | 25.4 | 111.2 |
| 1 1/2 | 1.9 | 7 | 1.99 | 1.25 | 1.75 | 1.25 | 2.75 | 2.88 | 4 | 1.12 | 4.88 | 5.36 |
| 48.3 | 177.8 | 50.5 | 31.7 | 44.5 | 31.7 | 69.85 | 73.15 | 28.4 | 123.9 |
| 2 | 2.375 | 8.5 | 2.5 | 1.5 | 2.25 | 1.5 | 4.12 | 3.62 | 8 | 1 | 6.5 | 9.85 |
| 60.3 | 215.9 | 63.5 | 38.1 | 57.15 | 38.1 | 104.6 | 91.9 | 25.4 | 165.1 |
| 2 1/2 | 2.875 | 9.62 | 3 | 1.62 | 2.5 | 1.88 | 4.88 | 4.12 | 8 | 1.12 | 7.5 | 13.7 |
| 73 | 244.3 | 76.2 | 41.1 | 63.5 | 47.7 | 123.9 | 104.6 | 28.4 | 190.5 |
| 3 | 3.5 | 9.5 | 3.63 | 1.5 | 2.12 | 1.62 | 5 | 5 | 8 | 1 | 7.5 | 11.6 |
| 88.9 | 241.3 | 92.2 | 38.1 | 53.8 | 41.1 | 127 | 127 | 25.4 | 190.5 |
| 4 | 4.5 | 11.5 | 4.63 | 1.75 | 2.75 | 1.88 | 6.25 | 6.19 | 8 | 1.25 | 9.25 | 19.7 |
| 114.3 | 292.1 | 117.6 | 44.4 | 69.85 | 47.8 | 158.7 | 157.2 | 31.7 | 234.9 |
| 5 | 5.563 | 13.75 | 5.69 | 2 | 3.12 | 2.12 | 7.5 | 7.31 | 8 | 1.38 | 11 | 31.9 |
| 141.3 | 349.2 | 144.5 | 50.8 | 79.25 | 53.8 | 190.5 | 185.7 | 35 | 279.4 |
| 6 | 6.625 | 15 | 6.75 | 2.19 | 3.38 | 2.25 | 9.25 | 8.5 | 12 | 1.25 | 12.5 | 41.1 |
| 168.3 | 381 | 171.4 | 55.6 | 85.8 | 57.15 | 234.9 | 215.9 | 31.7 | 317.5 |
| 8 | 8.625 | 18.5 | 8.75 | 2.5 | 4 | 2.5 | 11.75 | 10.62 | 12 | 1.5 | 15.5 | 70.7 |
| 219.1 | 469.9 | 222.2 | 63.5 | 101.6 | 63.5 | 298.4 | 269.7 | 38.1 | 393.7 |
| 10 | 10.75 | 21.5 | 10.88 | 2.75 | 4.25 | 2.81 | 14.5 | 12.75 | 16 | 1.5 | 18.5 | 101 |
| 273 | 546.1 | 276.3 | 69.85 | 107.9 | 71.4 | 368.3 | 323.9 | 38.1 | 469.9 |
| 12 | 12.75 | 24 | 12.94 | 3.12 | 4.62 | 3 | 16.5 | 15 | 20 | 1.5 | 21 | 133 |
| 323.8 | 609.6 | 328.7 | 79.4 | 117.3 | 76.2 | 419.1 | 381 | 38.1 | 533.4 |
| 14 | 14 | 25.25 | 14.19 | 3.38 | 5.12 | 3.25 | 17.75 | 16.25 | 20 | 1.62 | 22 | 153 |
| 355.6 | 641.3 | 360.4 | 85.7 | 130 | 82.5 | 450.8 | 412.7 | 41.1 | 558.8 |
| 16 | 16 | 27.75 | 16.19 | 3.5 | 5.25 | 3.38 | 20 | 18.5 | 20 | 1.75 | 24.25 | 185 |
| 406.4 | 704.8 | 411.2 | 88.9 | 133.3 | 85.9 | 508 | 469.9 | 44.4 | 618.9 |
| 18 | 18 | 31 | 18.19 | 4 | 6 | 3.5 | 22.25 | 21 | 20 | 2 | 27 | 258 |
| 457.2 | 787.4 | 462 | 101.6 | 152.4 | 88.9 | 565.1 | 533.4 | 50.8 | 685.8 |
| 20 | 20 | 33.75 | 20.19 | 4.25 | 6.25 | 3.62 | 24.5 | 23 | 20 | 2.12 | 29.5 | 317 |
| 508 | 857.2 | 512.8 | 107.9 | 158.7 | 91.9 | 622.3 | 584.2 | 53.8 | 749.3 |
| 24 | 24 | 41 | 24.19 | 5.5 | 8 | 4 | 29.5 | 27.25 | 20 | 2.62 | 35.5 | 606 |
| 609.6 | 1041.4 | 614.4 | 139.7 | 203.2 | 101.6 | 749.3 | 692.2 | 66.55 | 901.7 |
螺紋法蘭的用途
●工業管道連接
螺紋法蘭被廣泛用于連接管道系統中的管道、閥門和設備，確保整個系統的完整性和功能性。通過使用鍛制法蘭，可以實現管道之間的緊密連接，同時提供可靠的密封性能，有效防止介質泄漏，保障工業生產的連續性和安全性。
●石油和天然氣行業
它們被廣泛應用于油井的管道系統中，用于連接不同部分的管道，確保油氣的順暢流動。此外，這些法蘭還用于輸送管道的建設，它們能夠在長距離輸送過程中保持管道的完整性和密封性，防止油氣泄漏，確保生產安全。
●化工和制藥行業
螺紋法蘭被廣泛應用于化工反應器、儲罐以及復雜的管道系統中，確保了生產過程的連續性和安全性。這些法蘭不僅需要承受化學反應中可能產生的高壓和高溫，還要能夠抵抗各種腐蝕性介質的侵蝕，從而保證設備的長期穩定運行。
